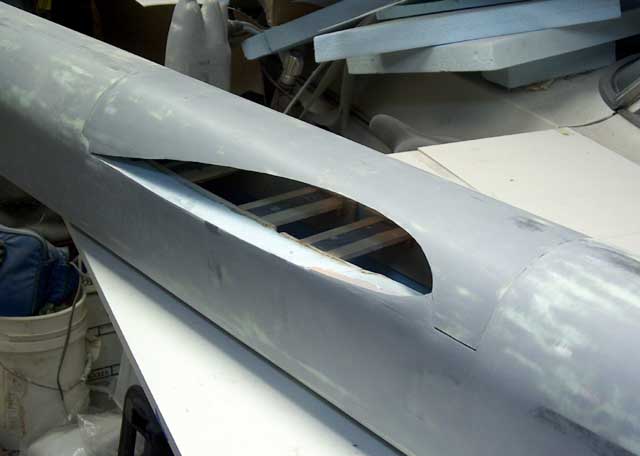

More pictures of my progress. Got the top cover for the wing mostly done, just a bit of finish sanding and filling to do. That Bondo is amazing stuff. Great for filling in gaps. I did notice the Bondo applied directly to blue foam results in a bit of the foam getting eaten away (at least when you goop the Bondo on thick).

HPIM1275

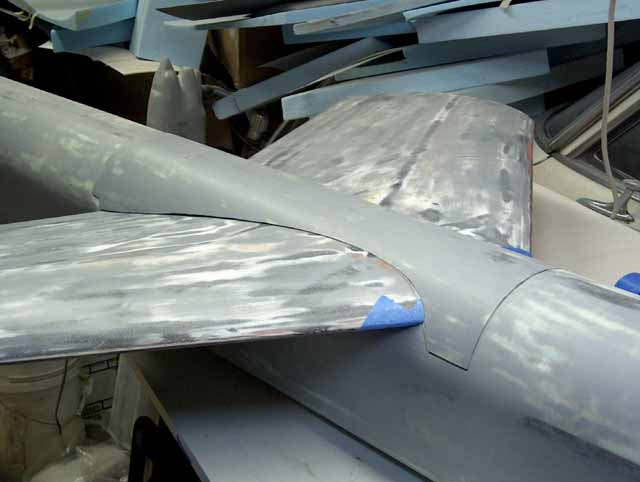

HPIM1276

I took a scan of my 3-view and laid it on top of a photo of my model in PhotoShop. Overall the match was pretty good, but I did find a few errors I don't think anyone will notice, as they are hard to spot unless you do the overlay.
Along the same lines, I was so pleased that the top cover for the wing came out right on my calculations. Looking at the narrowest part of the exposed fuselage above the wing, I had calculated from my 3-view that should be about 1/2 the width of the fuselage. Last night I went back to compare my work to a photo of the real plane The real plane is more like 1/3 the width of the fuselage.

HPIM1278

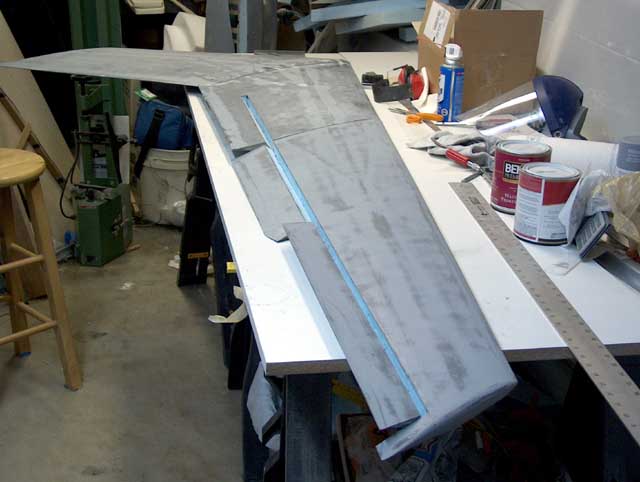

I also got half of the aileron hinges on the wing done. Rather nerve wracking, cutting through the carbon fiber, but not too far, so I won't cut the Kevlar. Even more scary to bend it the first time. Makes a frightening crack! I did find that once the hinges bend a bit, you can bend them over and sand the top of the hinge to get rid of excess carbon fiber and loosen the hinge up.

HPIM1288

Test prints of the decals, making sure they are about the right size.

HPIM1345

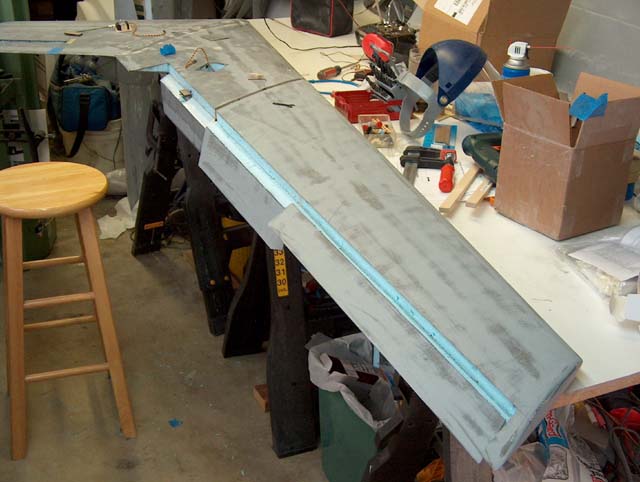

Getting the wing wired up.

HPIM1344

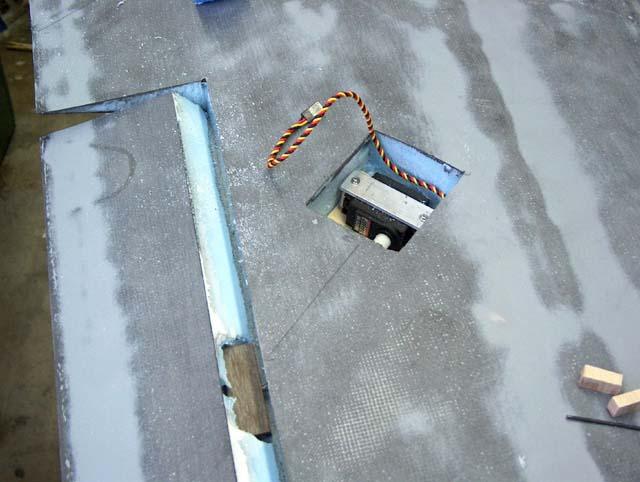

Got the first rotary drive installed.

HPIM1342

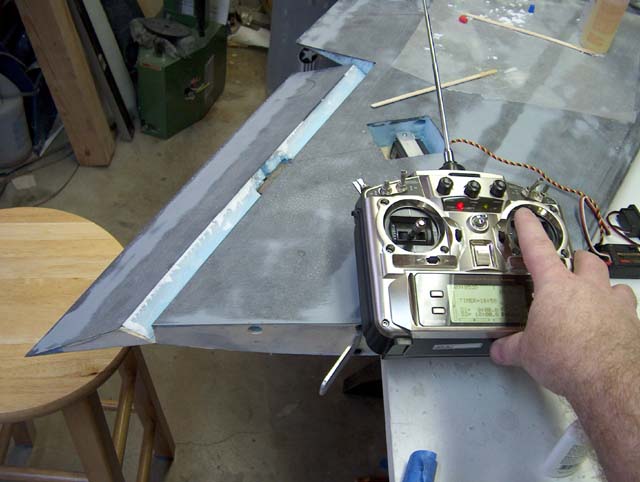

Baby's first step, it works!!!! Four more to go...

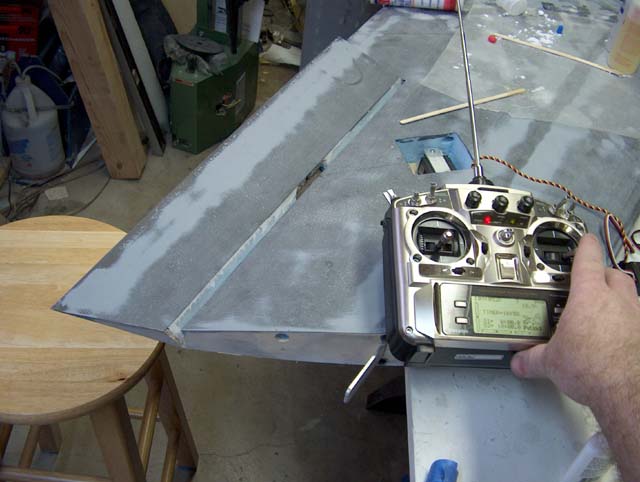

HPIM1346
HPIM1347

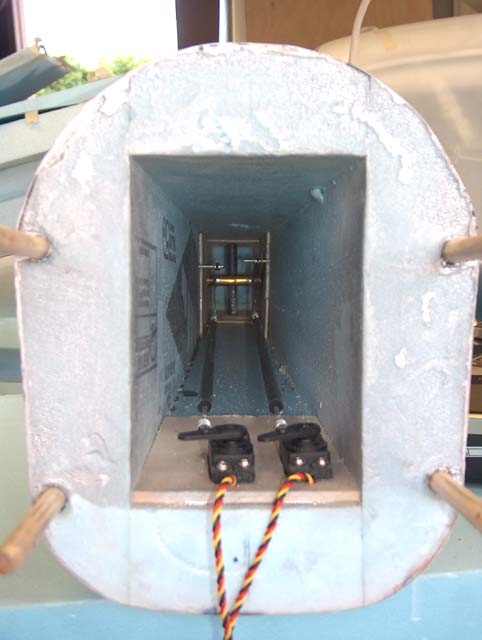

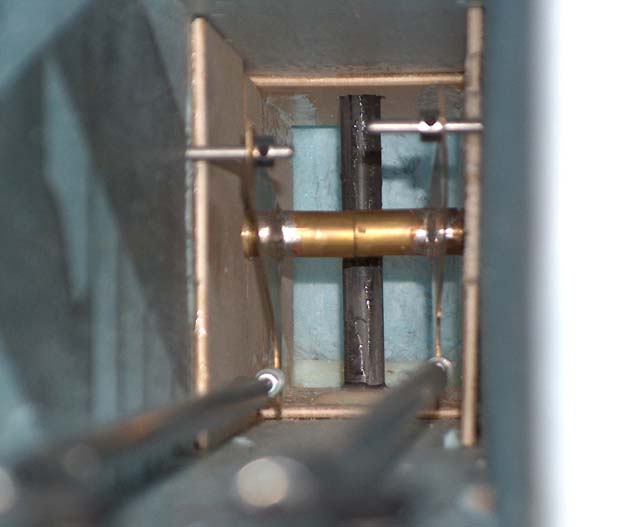

Elevator linkage.  One servo per side.

HPIM1421
HPIM1423

Receiver switches

HPIM1425

Got a little paint on today. Started out trying to do latex, but my spray gun only seemed to send out occasionally spurts of spray. Tried thinning and increased air pressure, to no avail. It must need a good cleaning. So I wiped the latex off the wing center section, some of it took a plastic scouring pad (stolen from the kitchen ) to get off. I then went and got a bunch of spray paint. Fortunately the colors are simple, White and Aluminum.
It is so good to see something besides primer for a change I have the bottom of the main fuselage, rear fuselage, center wing and elevator done. Bottoms white, top is Aluminum.

HPIM1348
HPIM1349

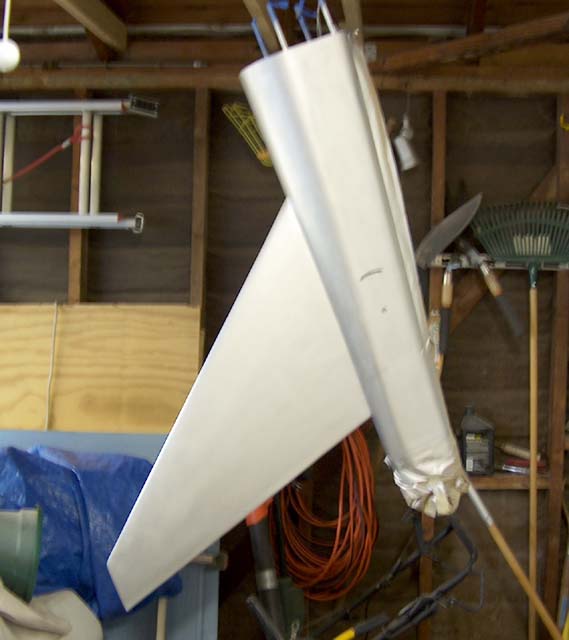

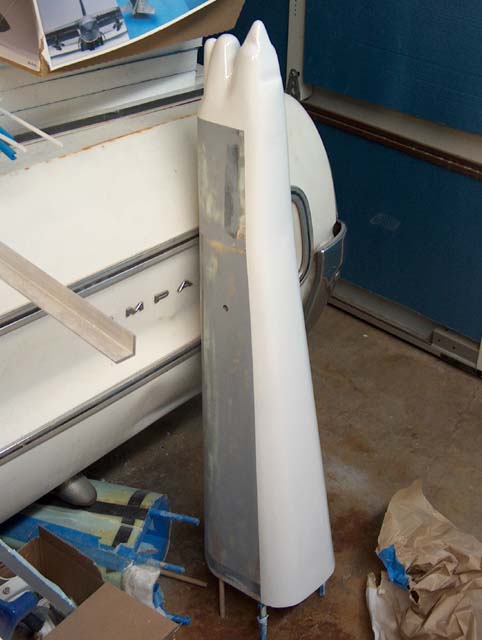

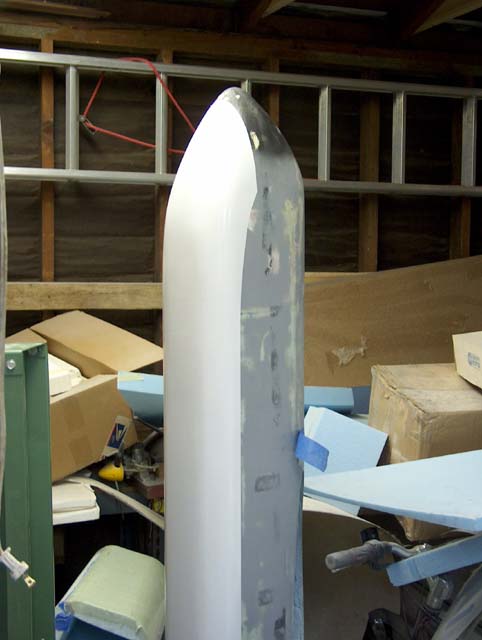

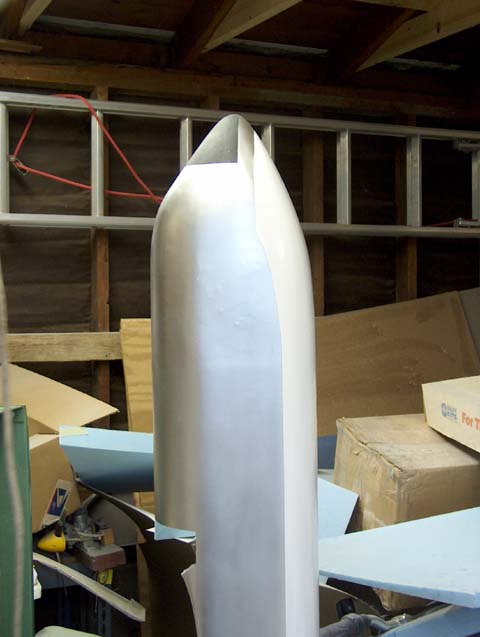

Major painting is done. Silver is an unforgiving color, especially when you skip sanding you should have done . Oh well, this is a temporary finish, the real finish will be in FliteMetal after a proper sanding job is done (assuming the FliteMetal ever ships).

Engine pods are next. After that, put in windows, wire it up and slap on some decals.

HPIM1350
HPIM1351

This thing is HUGE!!! I am afraid to fly it! It seems like it weighs too much to fly!

Lots of stuff did not get done. No engines, no decals, no rudder, no clear canopys. But I think it might be flyable. Still need to work on the radio programming a bit. Took about 3 lbs of lead in the nose to balance !!

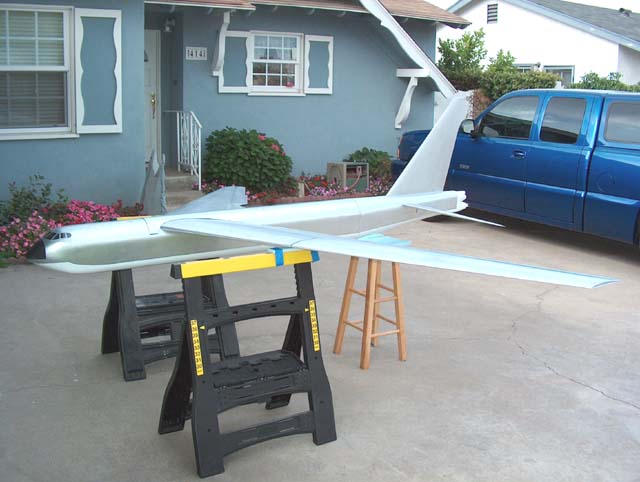

HPIM1356

At the PSS Festival 2004.  No engines, no decals, and no wind, so it did not fly that day.

50

Managed 5th place with an unfinished plane that did not even fly.  Better than I thought it would do.

HPIM1390

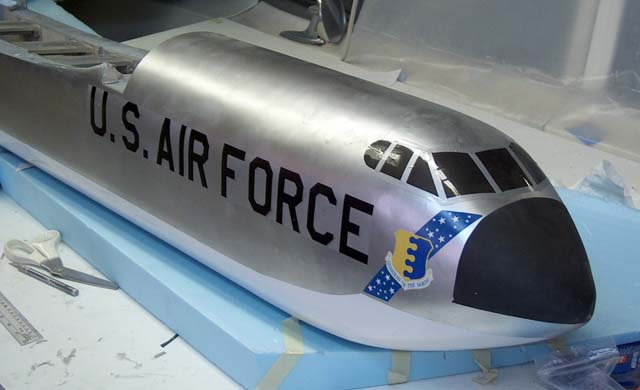

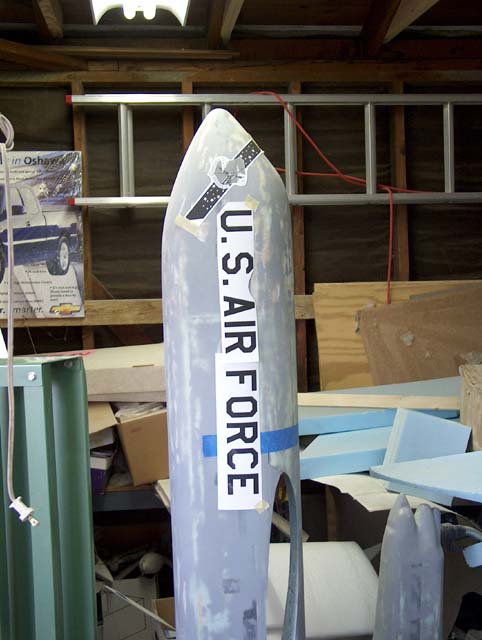

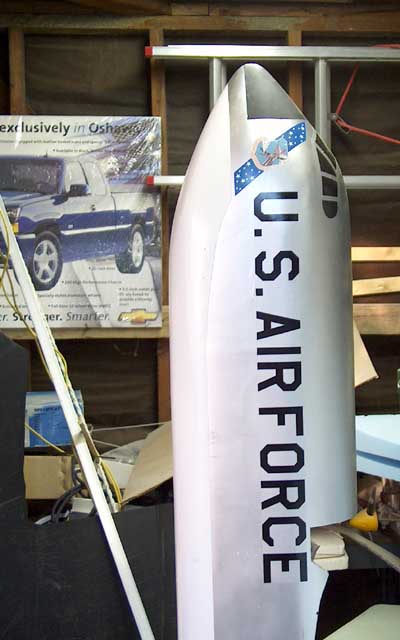

Back to the shop.  I went ahead and put the decals on. Mostly for practice as they did not come out that well. My inkjet printer has a few clogged nozzels. I did learn a thing or two at the seminar at the PSS festival. And the decals do add a lot to the look. So next go around they will be even better.

HPIM1426
HPIM1427

A couple weeks later, it is ready for the maiden flight. Packed it up to Cajon Pass again.

HPIM1481

The wind seemed pretty strong, so time to chuck it off the edge.

http://www.thecairns.com/pss/b-52.wmv

HPIM1482

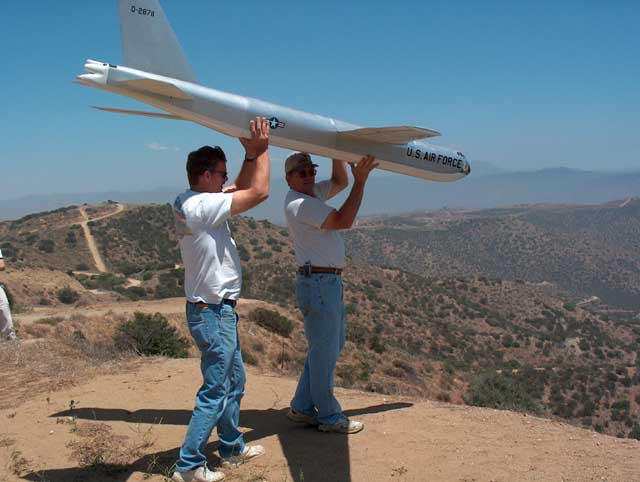

It flys!!! But where is the wind???

B-52c

Lower and lower it goes...

B-52b

And the inevitable retrieval from way down the hill.

B-52d

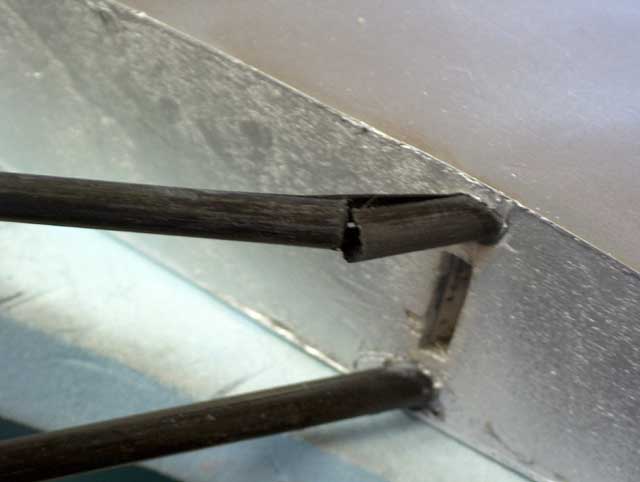

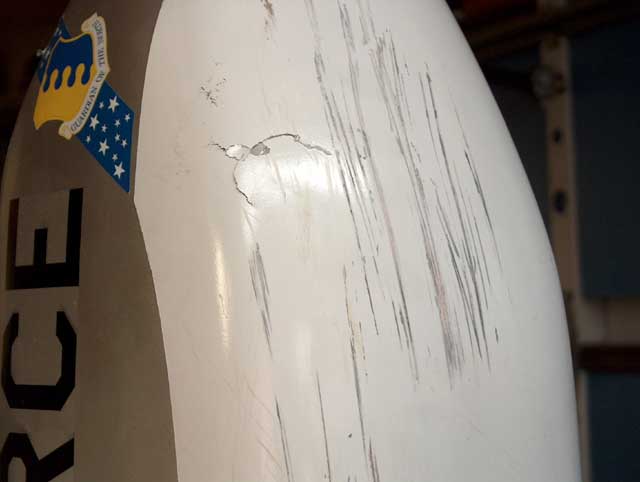

Damage was light, but the carbon spar/wing joiner did not hold up to the forces of a rough landing.

HPIM1517
HPIM1521

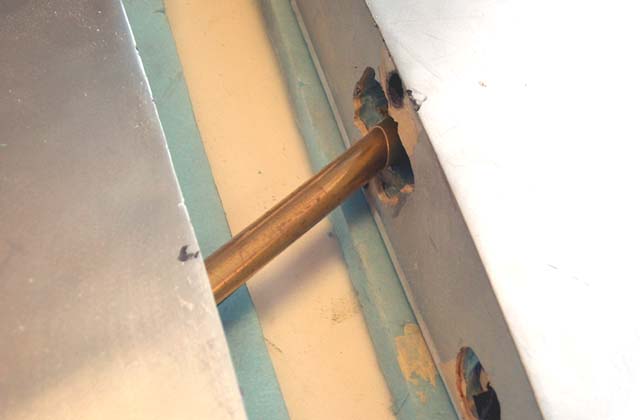

New wing joiner.

HPIM1965

I have also started working on the engines and pylons.

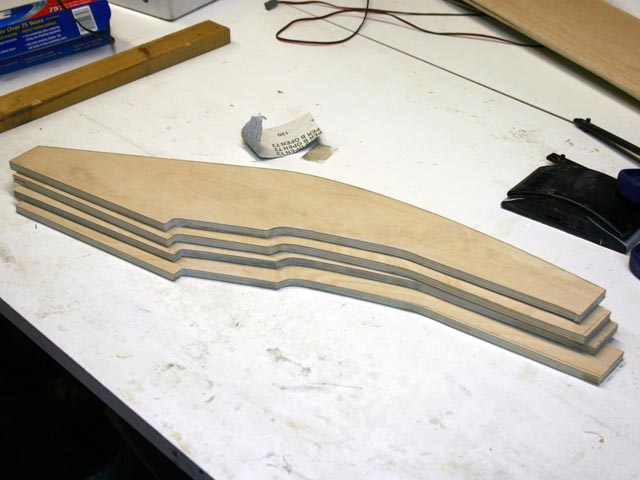

Cut the engine plyons out of light plywood.

IMG_0402

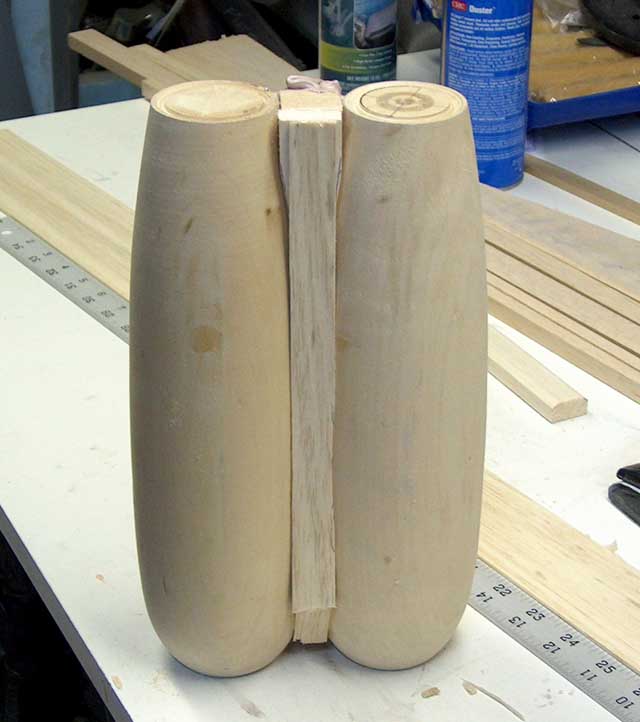

To make the plug for the engines, I turned some wood on the lathe and built a raised area in between them

HPIM1279

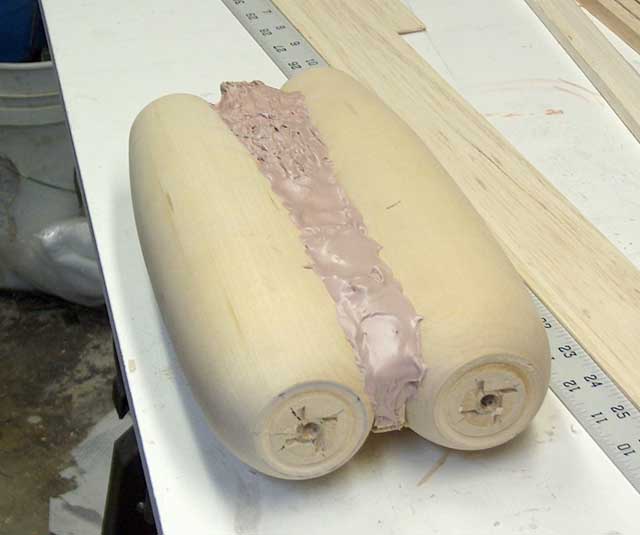

Gooped on the Bondo.

HPIM1282

After shaping the Bondo, I cut the engines in half to make the shape for creating the engines.

HPIM1285

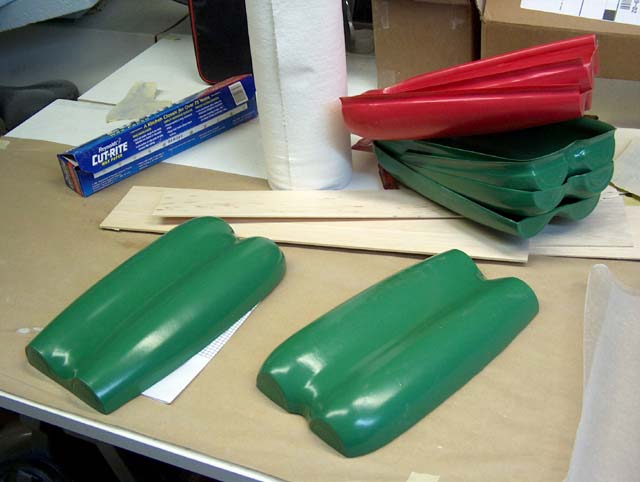

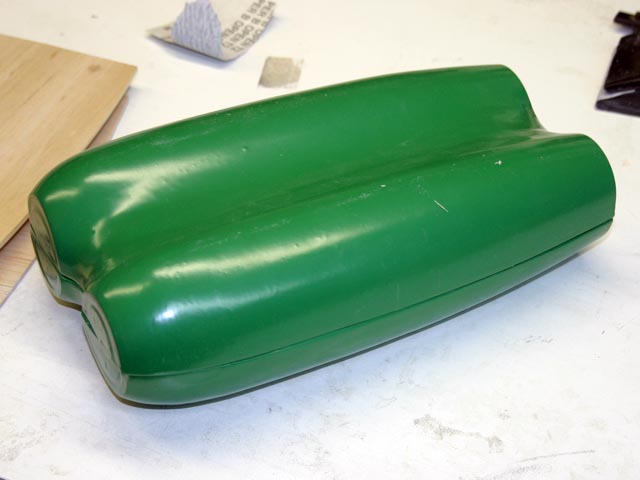

Steve, an ex-B-52 crew chief, vac-u-formed the engine pods for me. Quite a festive choice in colors They will needs some white paint to finish them off.

HPIM1352

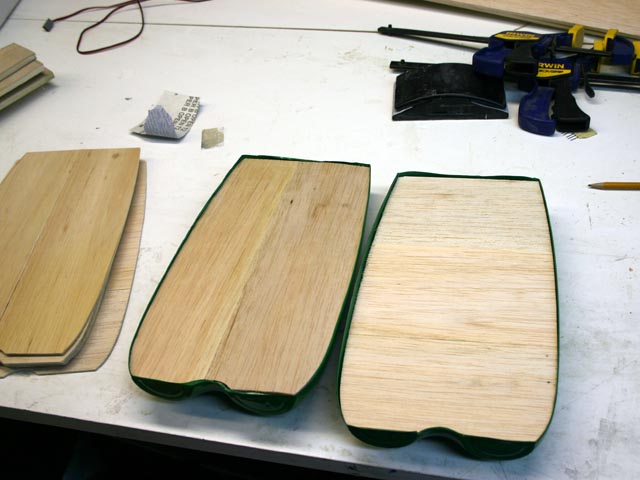

Using some balsa sheet glued into each half of the pod will stabilize the shape and let me glue them together.

IMG_0404

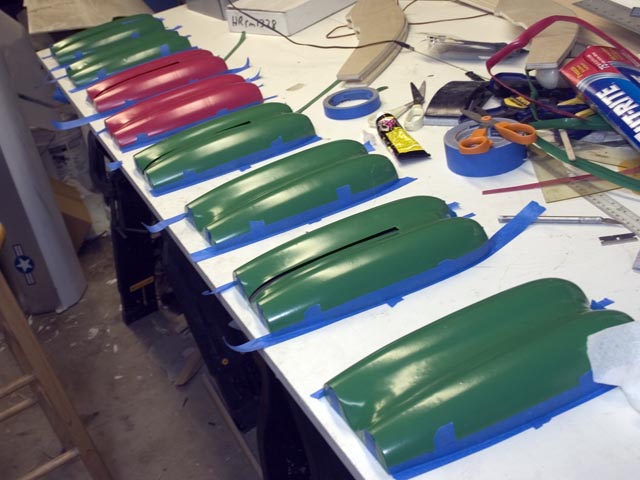

All eight of them glued up and drying.

CRW_0475

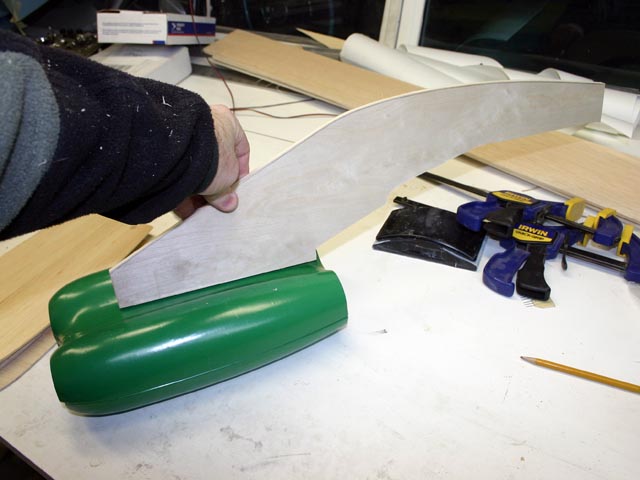

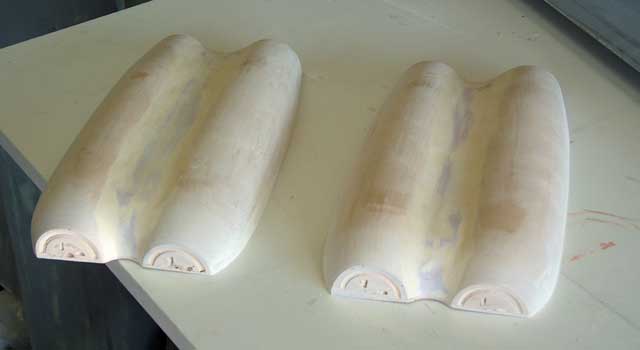

After they are glued together, I will have to do a bit of Bondo filliing and sanding I can then cut out the enty and exits of the jet's engines for access to the interior for the next step.

IMG_0405

After they are glued together, I will have to do a bit of Bondo filliing and sanding I can then cut out the enty and exits of the jet's engines for access to the interior for the next step.

IMG_0406
