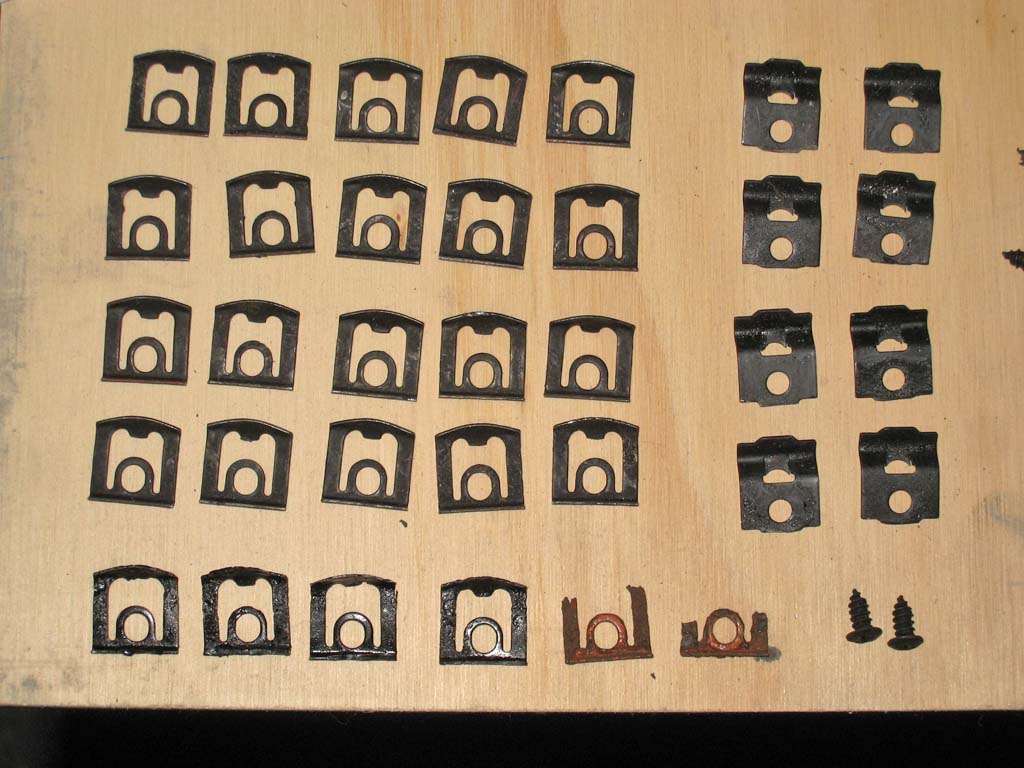

Original rear clips on left, repros with 'grippers' cut off on the right. The two partial clips are stil their orginal orange, the others were painted with rust encapsulator paiint. The very bottom row has the 4 that were severly rusted plus the two that are obviously unusable. There should have been two or four more, according to the holes in the body. The 20 upper clips are in good shape (plust the repros makes 28 that are needed). I am not sure the repros will work, though. Oringinal scews shown in lower right, also painted with rust encapsulator, but I have stainless replacments that are similar enough to work.

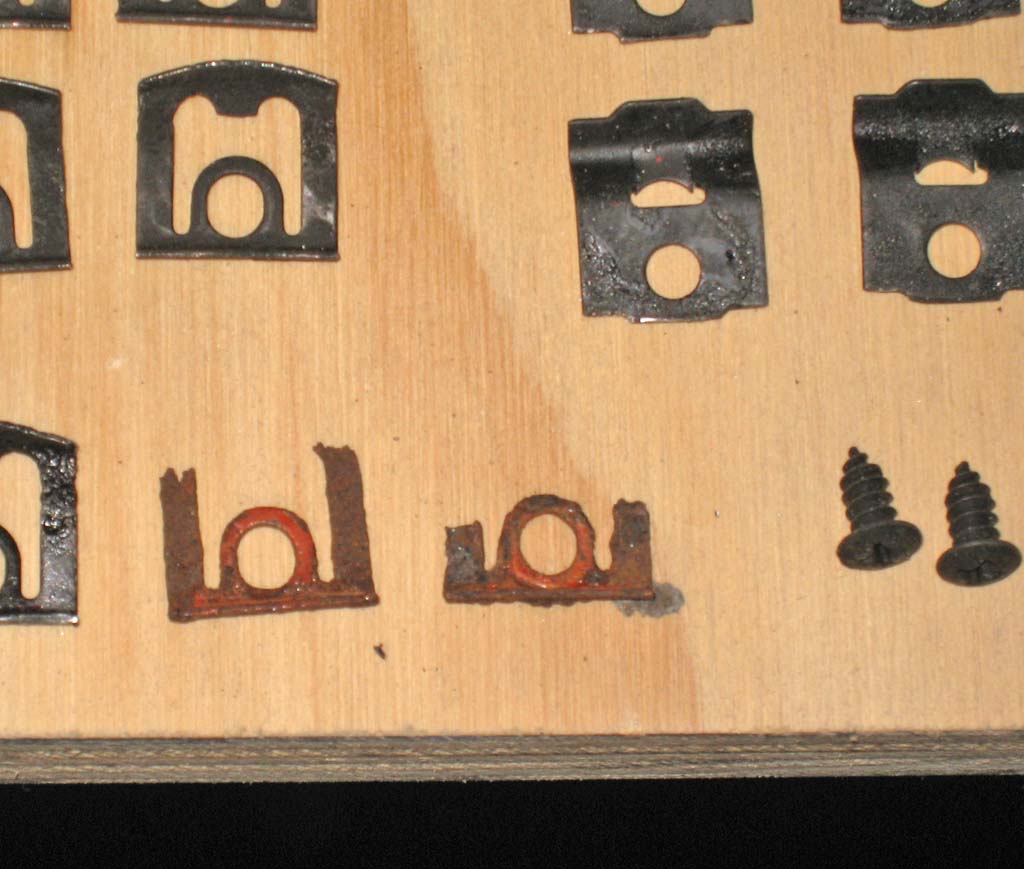

Closer shot.

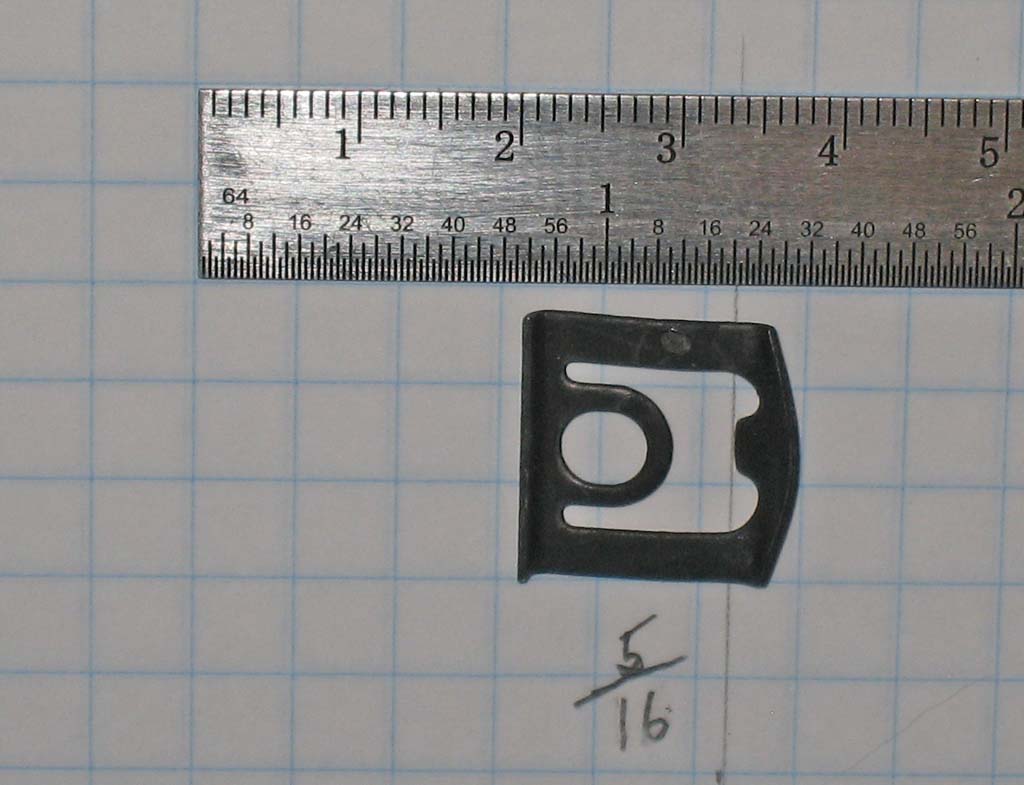

Rear clip measures 5/16 from center of hole to the "tooth" of the clip.

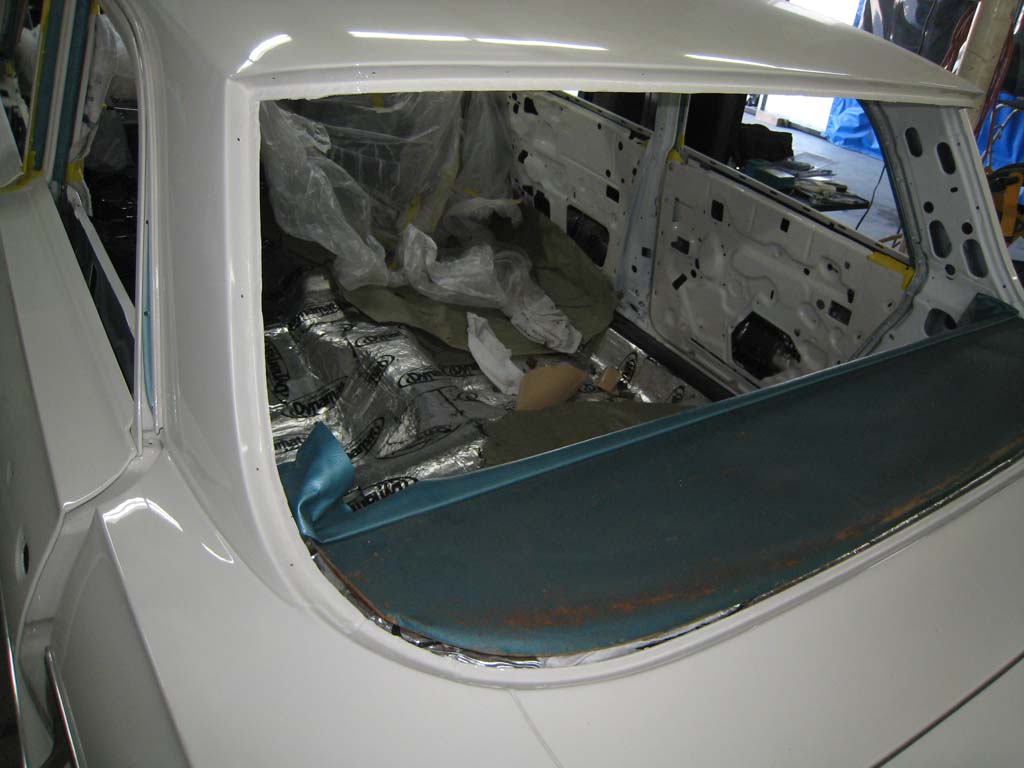

Back window. The screw holes can be seen, barely.

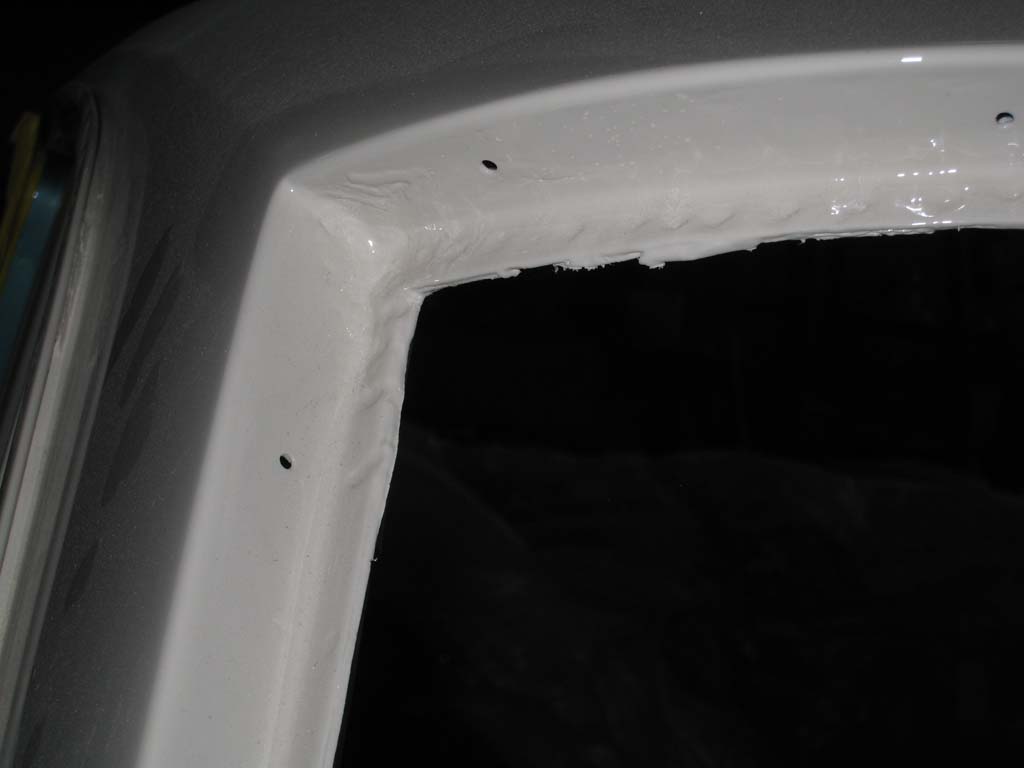

Closer shot of the screw holes.

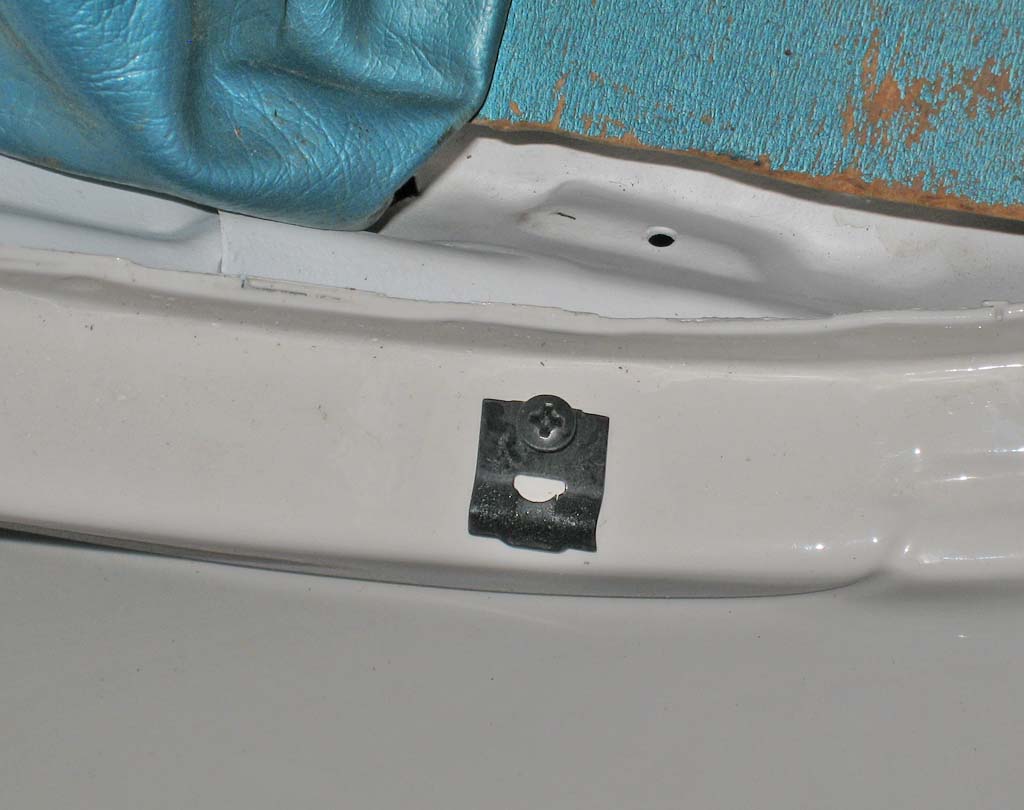

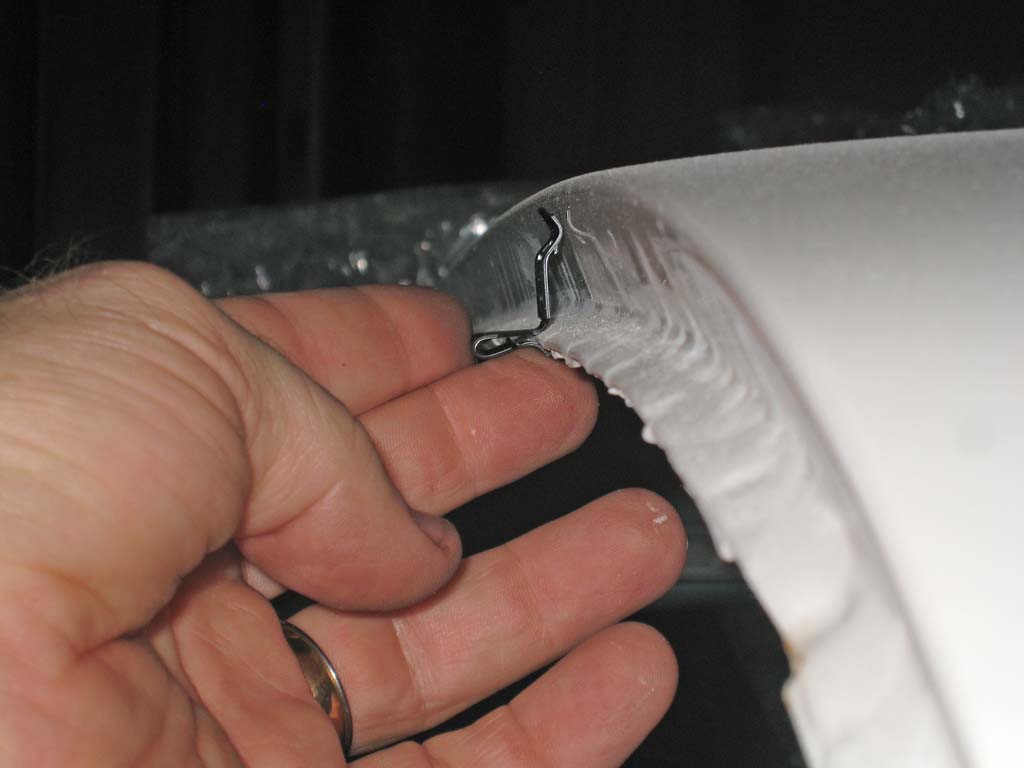

Original rear clip in place

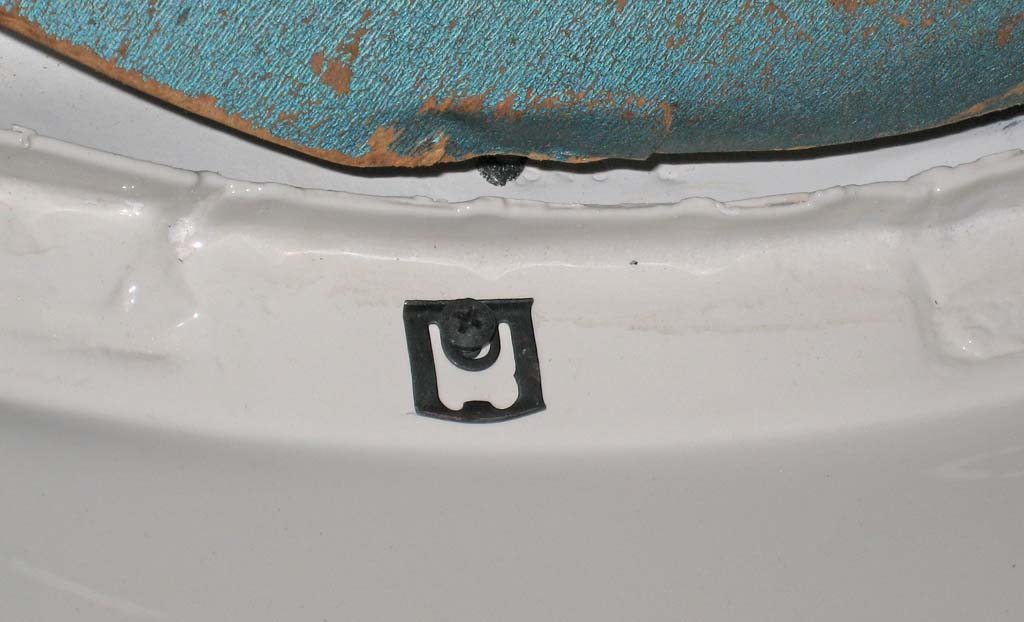

Repro rear clip with trimmed gripper in place

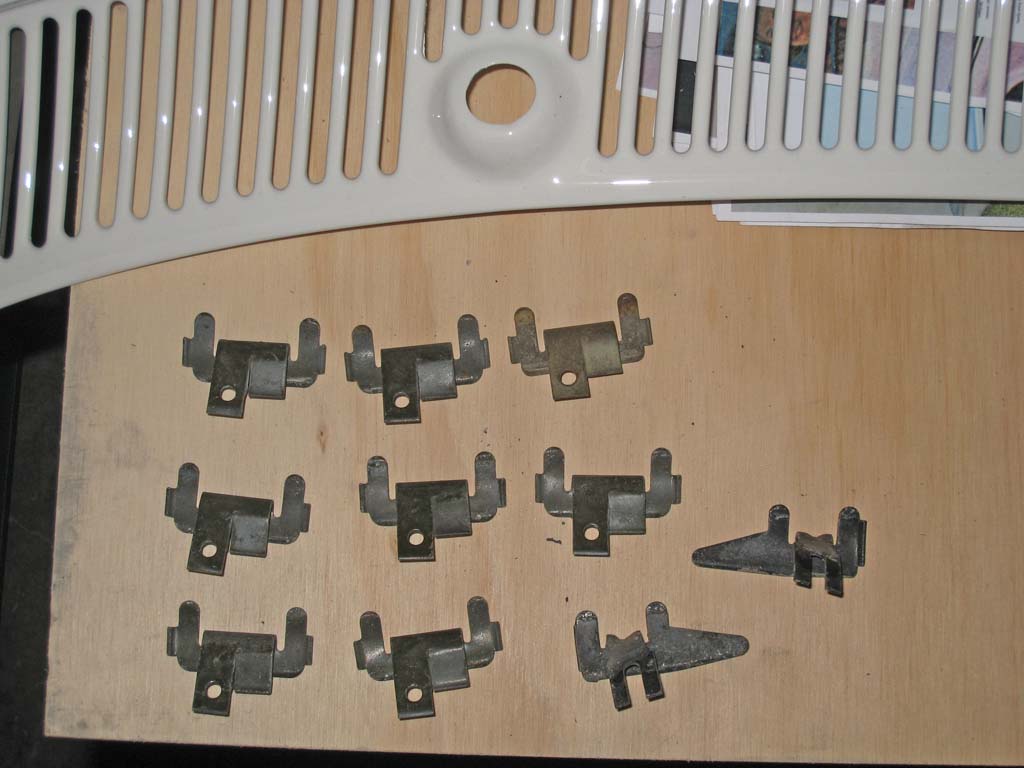

Original clips for the front, the rest were lost.
Fargo clips for the front.

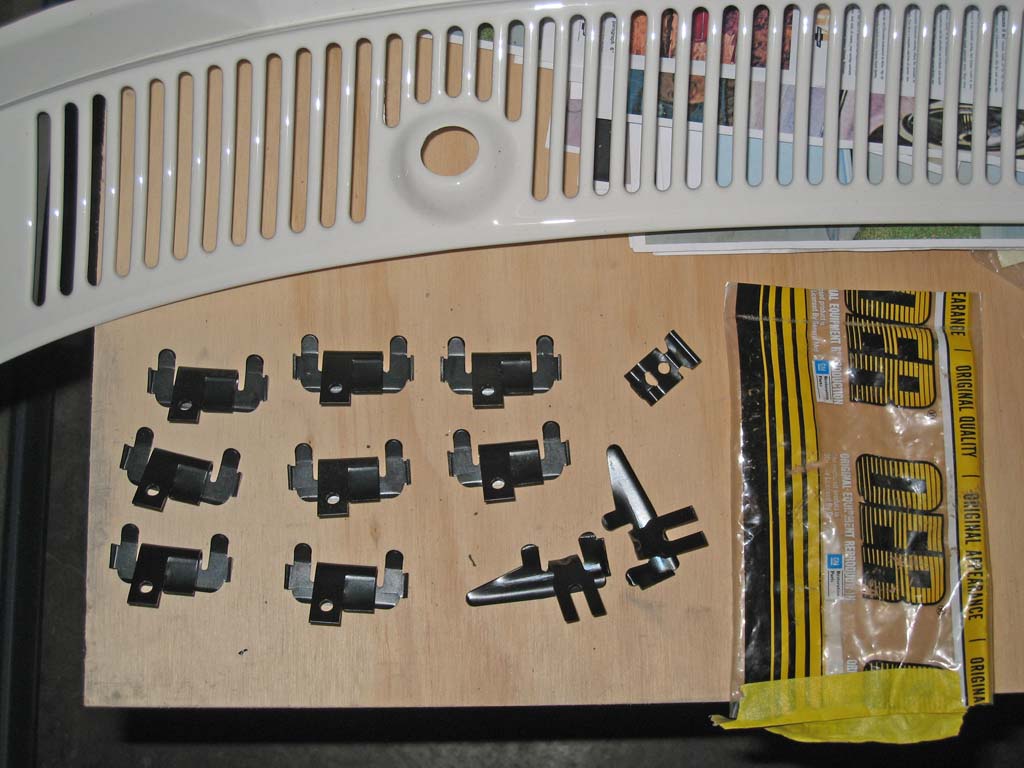

OER clips for the front. One remaining clip with the gripper still on, the rest were trimmed in an attempt to make rear clips
OER clips for the front, close up.

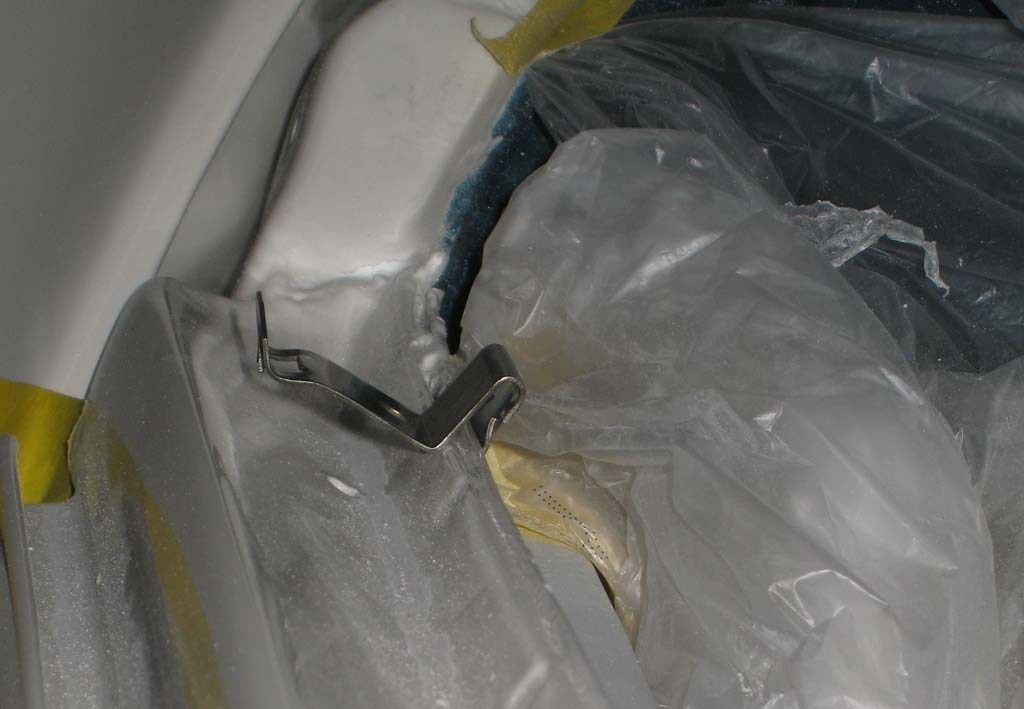

OER on the top of the front windshield.

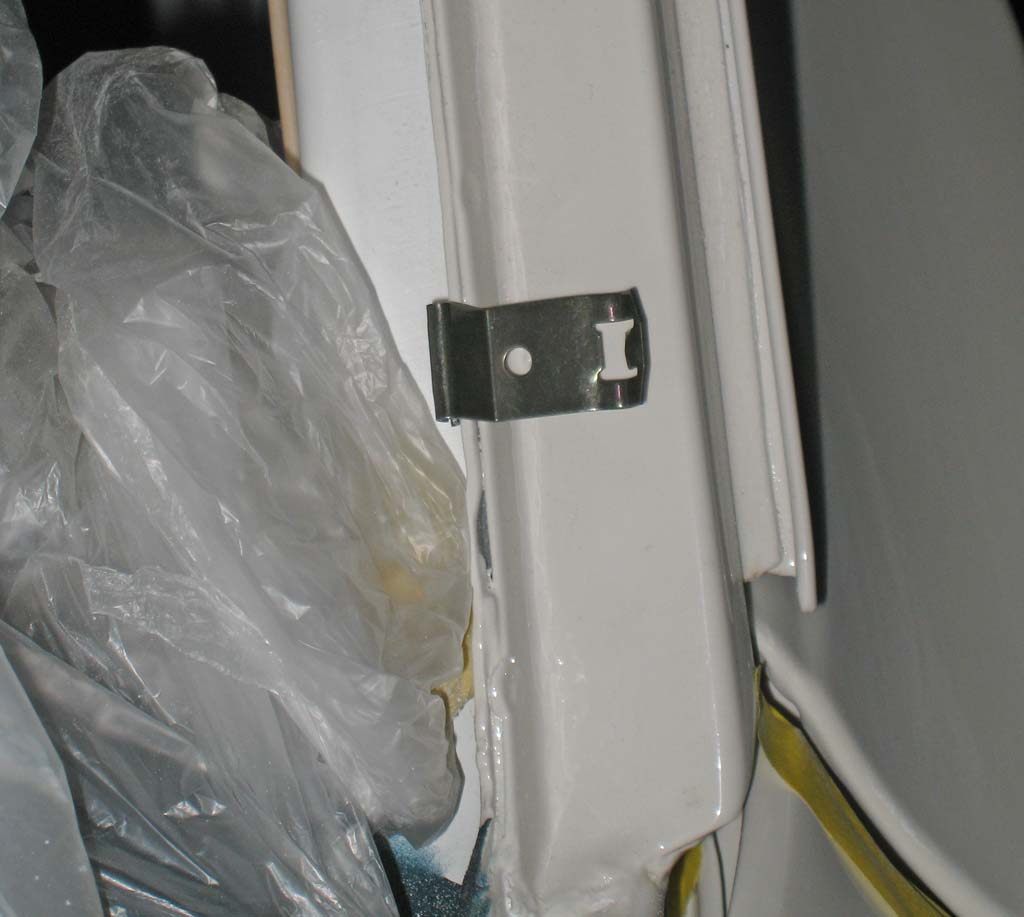

Fargo clip on the side of the front windshield.
Fargo clip on the side of the front windshield.
